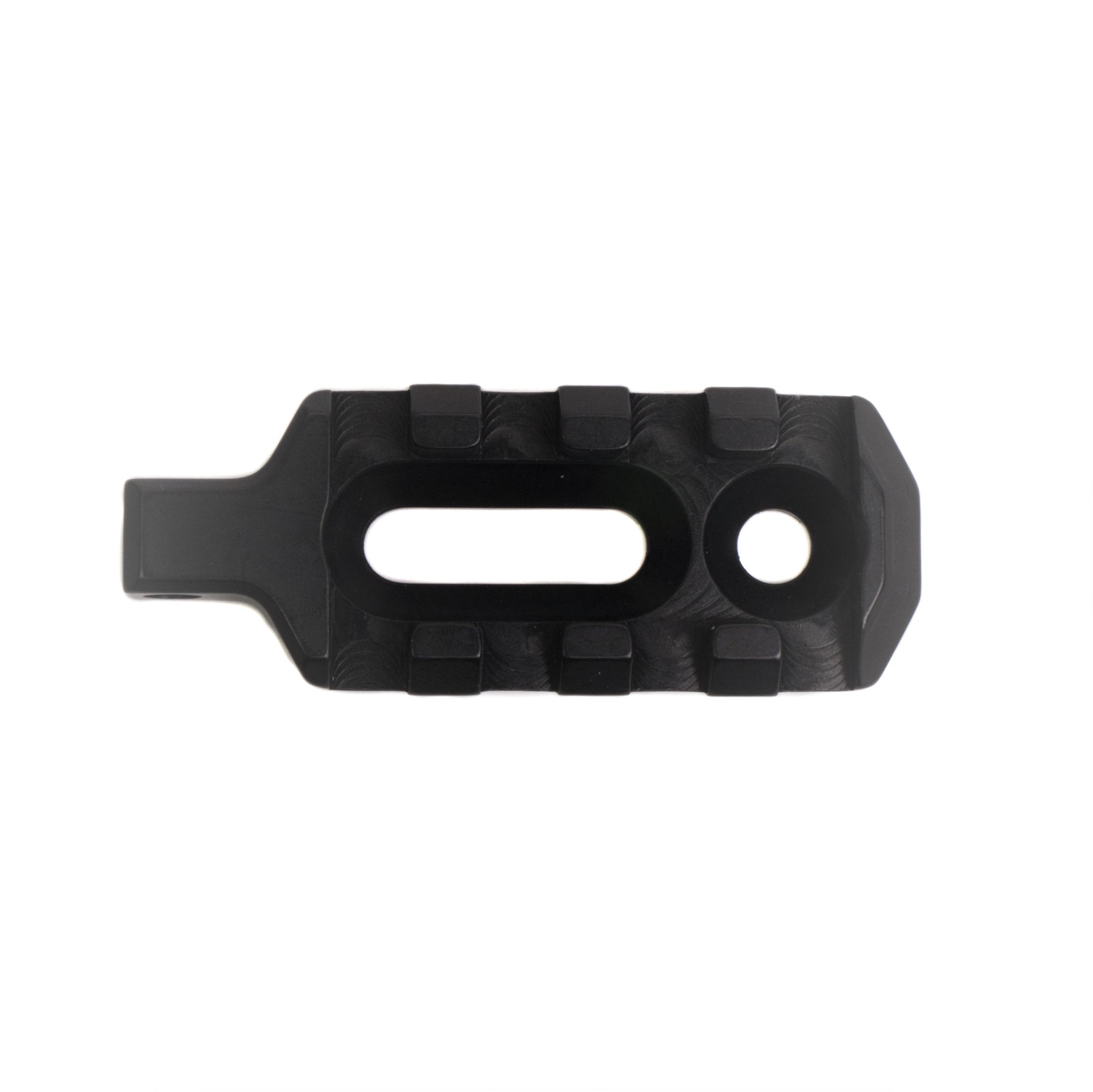

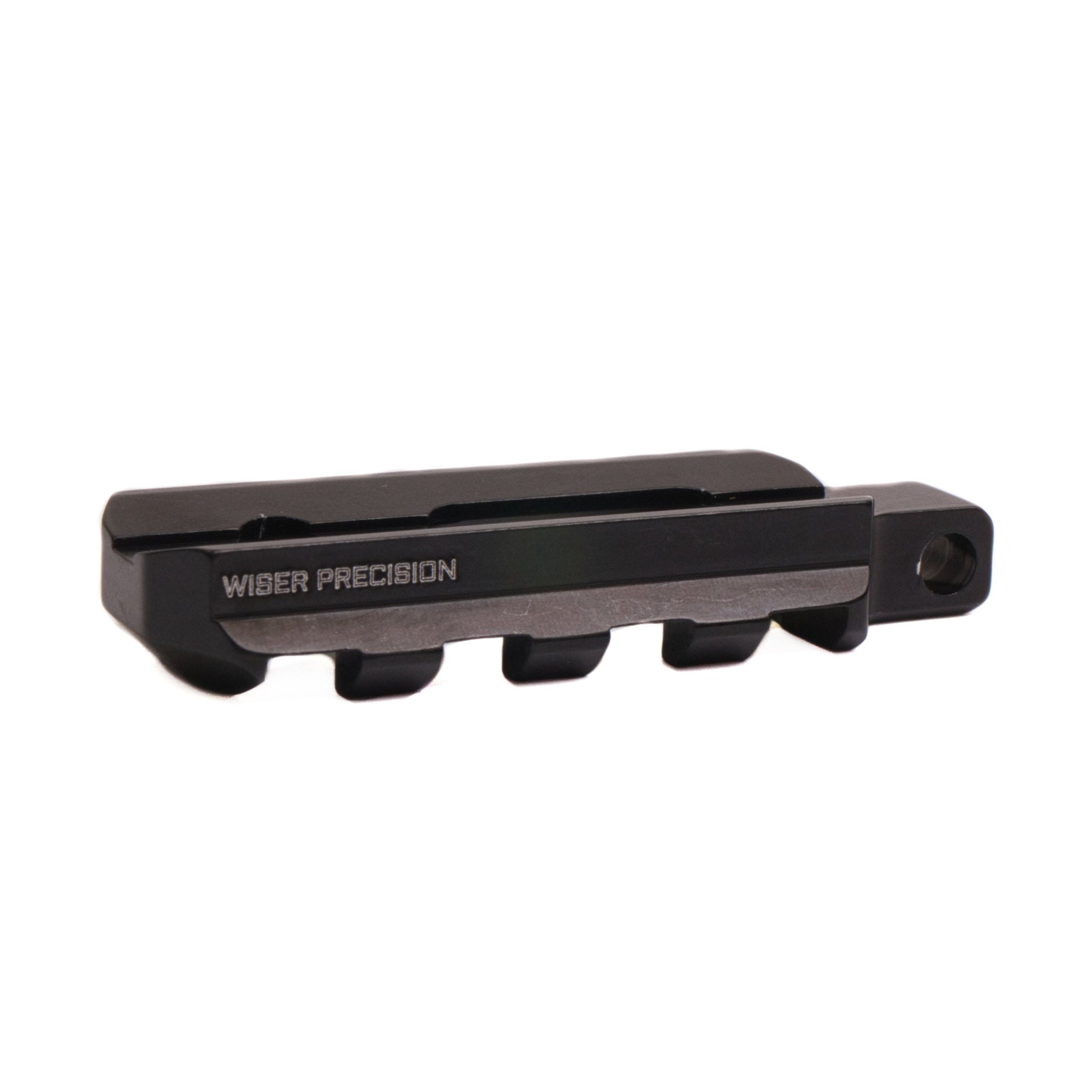

This 0.35oz, 4 slot Picatinny rail is designed with specific features to make for an extremely secure mount to any style of stock with weight saving and durability in mind.
Flat rails contact a rounded stock at a single point, and have a tendency to roll and move with applied pressure. Our Unique 150° included angle means you will have two points of contact against any stock, making for a secure connection regardless of your stock's geometry.
Sling studs don't facilitate the mounting of other accessories such as bipods, but you might not want to ditch your sling entirely. Our unique Ultralight rail gives you the flexibility to run a bipod or other accessory while still maintaining the ability to attach a sling to the rail.

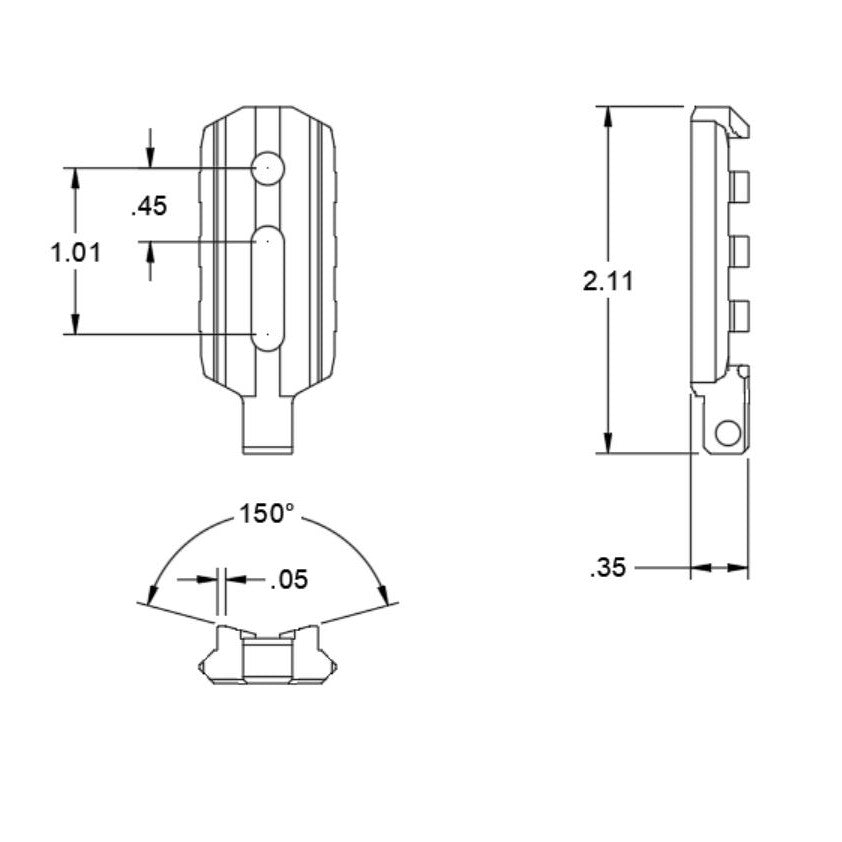

The 150° included angle also features 0.050" flats outside of the angle to give a solid fit to stocks/chassis which are completely flat. In addition, we've also used a Pin and Slot design for the fasteners, which provides flexibility to work around unique features of your stock when choosing a mounting location.
Machined right here in the USA out of billet aluminum and including stainless steel hardware. The premium materials and black anodized finish provide excellent resistance to wear and the environments.
- Made in the USA!
- Universal Fit
- Sling Swivel Compatible
- 150° Included Angle Guarantees 2 Points of Contact
- Black Anodized Finish
- Stainless Steel Hardware

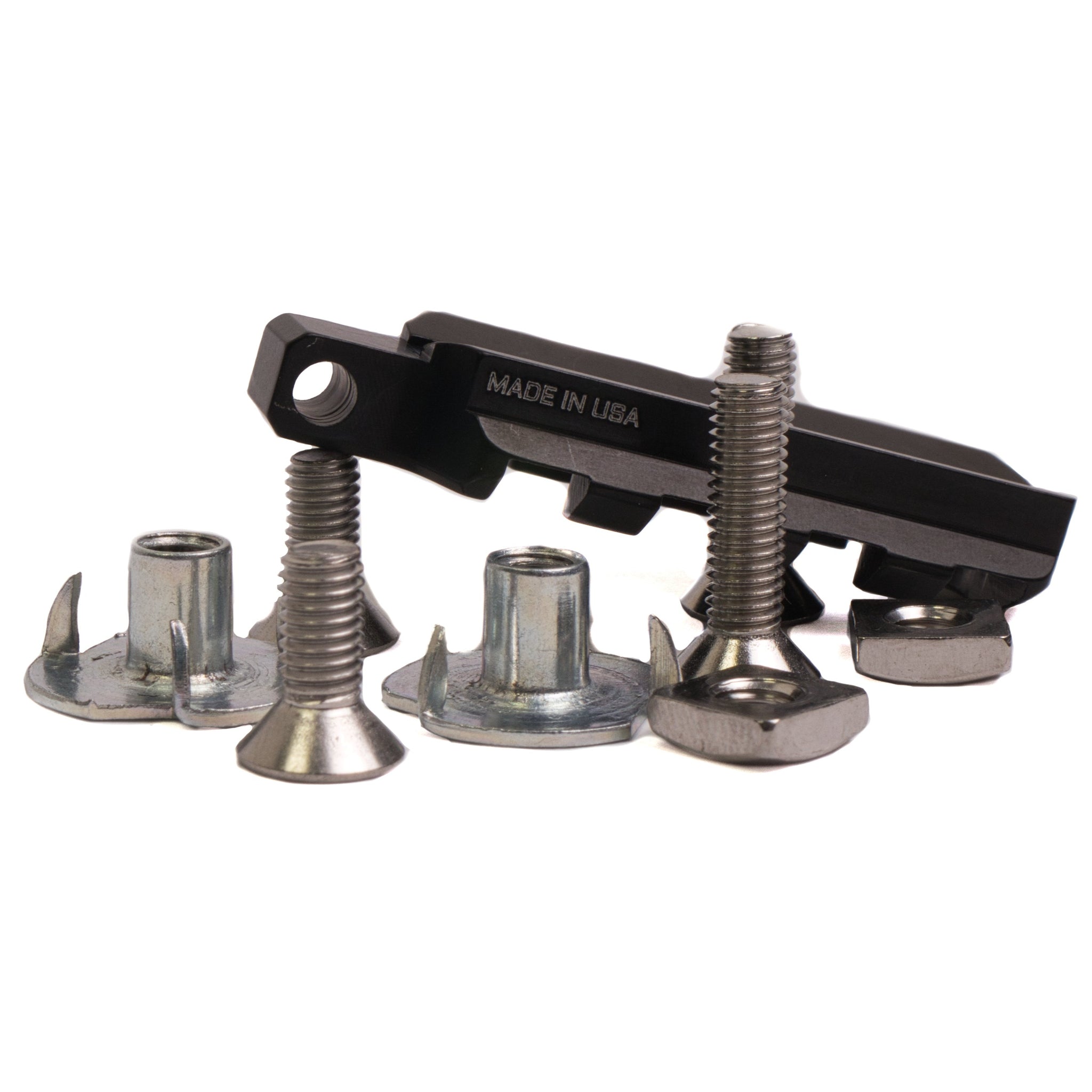

(1) 4 slot Ultralight Picatinny rail
(2) 10-32 1/2" Stainless bolts
(2) 10-32 3/4" Stainless bolts
(2) 10-32 Stainless T-Nuts
(2) 10-32 Stainless Square Nuts
|Bolt Spacing Min.
|Bolt Spacing Max.
I bought this so I could mount the quik clip to my rifle. I have a Savage with a composite stock and I was able to use the existing sling bolt hole and I just needed to mark and drill the other hole. was really easy. Feels really solid. Happy with the design and build quality. I just wish Wiser would make it more obvious that you may need this piece for the quik clip. I had to make 2 orders
This mount is an excellent value with plus features including sling swivel mount and an excellent mounting hardware election with stainless steel fasteners and Tee-Nuts (wood application design.)
No Instructions with the Picatinny Rail only various parts for different applications. The Quick clip did not come with any way to mount it to my new rifle and I was not told I would need to purchase one. I asked for a phone call from Shaun but only received emails, very frustrating! I finally got it mounted after a few mistakes! I'm looking forward to trying this product this rifle Deer & Elk season. But i did not get off to a good start with technical support purchasing and mounting the product.
Going on my first elk hunt hope to use it . Thank you for a great product!
Light weight, low profile and perfect length
